Installing an induction cooktop is one of the most impactful kitchen upgrades for modern U.S. homes. It improves cooking speed, energy efficiency, indoor air quality, and overall kitchen safety compared to traditional gas or electric ranges. However, a successful installation depends on proper electrical planning, countertop preparation, and understanding safety requirements.
This guide explains everything you need to know—from electrical specs and clearances to step-by-step installation considerations and common homeowner concerns.
Why Choose an Induction Cooktop?
Induction cooking uses electromagnetic energy to heat cookware directly rather than heating a burner surface. This creates several benefits:
- Faster boiling and cooking times
- More precise temperature control
- Cooler kitchen environment
- Easier cleaning (flat glass surface)
- Improved indoor air quality (no combustion gases)
Unlike gas cooktops, induction systems do not release combustion byproducts, making them a cleaner option for modern kitchens. However, they do require proper electrical capacity.
You might be interested in:
Before Installation: Key Planning Considerations
1. Electrical Requirements (Critical Step)
Proper electrical planning is essential before installing an induction cooktop in a U.S. home. Most models require a dedicated 240V or 208V electrical circuit to operate safely and efficiently. Unlike smaller countertop appliances, induction cooktops draw high power and must not share a circuit with other kitchen devices.
Standard Electrical Requirements (U.S. Homes):
- Power supply: 240V / 208V, 60 Hz electrical system
- Circuit type: Dedicated circuit only (no shared appliances)
- Grounding: Proper grounding is required at all times for safety
Recommended circuit size by cooktop width:
- 15" cooktops: ~20 Amp dedicated circuit
- 24" cooktops: ~30 Amp dedicated circuit
- 30" cooktops: ~40 Amp dedicated circuit
- 36" cooktops: ~50 Amp dedicated circuit
Wiring requirements:
Use copper conductors only
Minimum wire size typically 10 AWG or larger (depending on model and local code)
Wiring must be rated for high-temperature operation
A properly rated breaker must match the cooktop’s load requirements
Safety and code considerations:
A GFCI breaker may be required in some local jurisdictions, especially for kitchen installations. However, certain induction cooktops may experience nuisance tripping, so compatibility should be confirmed in advance.
Always follow National Electrical Code (NEC) and local building regulations.
Important note for older homes:
If your home previously used a gas range, additional electrical work may be required, such as:
Installing a new 240V electrical line
Upgrading the electrical panel to support higher load demand
Recommendation:
Because electrical requirements vary by model, installation should always be verified by a licensed electrician to ensure safety, compliance, and optimal performance.
2. Electrical Load, Amperage & Circuit Capacity (Important Safety Requirement)
Before installing an induction cooktop, it is critical to understand that the appliance does not connect directly to your home’s total electrical service (e.g., 100–200 amps). Instead, it requires a dedicated high-amperage circuit installed specifically for the cooktop.
Dedicated Circuit Requirement (Not Household Total Load)
Induction cooktops must be connected to a single dedicated branch circuit, meaning no other appliances can share the same circuit. This ensures stable performance and prevents overheating or breaker tripping.
Because this installation involves high-voltage electrical work, final connection should always be performed or inspected by a licensed electrician to ensure compliance with local electrical codes and safe operation.
3. Countertop Cutout & Clearance Requirements
Proper spacing is essential for safety and airflow.
General installation guidelines:
Minimum 2 inches (51 mm) from cooktop bottom to combustible materials
Minimum clearance around conduit and rear electrical connections
Follow manufacturer cutout dimensions exactly
Typical cutout considerations:
- 30-inch cooktop cutout: ~29 inches wide
- 36-inch cooktop cutout: ~35 inches wide
Incorrect clearance can create fire hazards or damage cabinetry.
Step-by-Step Induction Cooktop Installation Overview
Induction Cooktop Installation Steps
Step 1: Check Installation Requirements & Countertop Dimensions
Review the installation drawing and ensure your kitchen countertop has the correct cut-out size and overall dimensions suitable for the induction cooktop.
Step 2: Ensure Proper Ventilation Space
Make sure the underside of the cooktop has sufficient airflow. The cooling fan must not be blocked to prevent overheating.

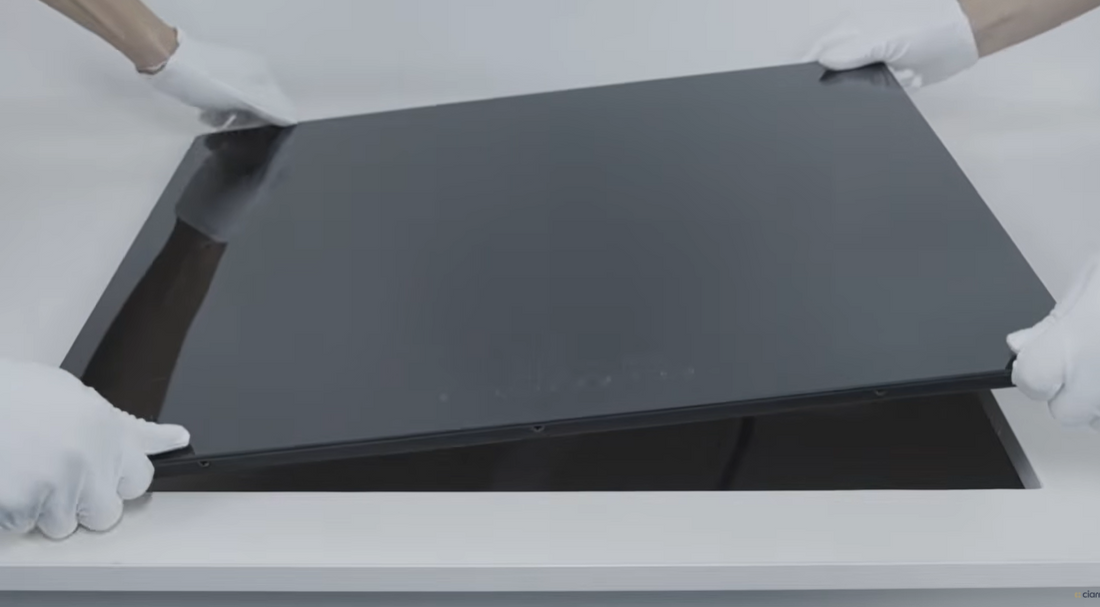

Step 3: Prepare the Countertop Opening
Place the induction hob into the pre-cut perforated countertop opening carefully and ensure it fits securely.
Step 4: Install Mounting Brackets (If Required)
If the opening size is larger than 565 × 495 mm, install the mounting brackets to help secure the unit and make future disassembly or maintenance easier.
Brackets can be installed on the left or right side and must be screwed firmly to the bottom base of the hob.
Step 5: Secure the Cooktop
Fix the induction hob properly into position using the mounting brackets to ensure stability.
Step 6: Connect to Power Supply
Check that the voltage on the rating label matches your home power supply.
Connect the cooktop to a junction box. Do not use a single-phase plug.
Electrical connection must be performed by a qualified electrician or through a single-pole circuit breaker.
Step 7: Initial Safety Check Before Use
Ensure cookware is placed correctly on the cooking zone. If no cookware or incorrect cookware is detected, the unit may show an error and stop after 60 seconds.
Step 8: After Use & Maintenance
If a cooking zone is still hot, an “H” indicator will appear until it cools down.
Once cooled, clean the surface with a damp cloth only. Do not use abrasive cleaners or brushes.
Common Installation Problems & Troubleshooting
1. Incorrect countertop cut-out size
The cooktop does not fit properly into the countertop opening, either too tight or too loose.
Solution:
Check the installation drawing before cutting. Ensure the cut-out matches the required dimensions. If the opening is larger than 565 × 495 mm, use mounting brackets to secure the unit properly.
2. Poor ventilation under the cooktop
The induction hob overheats or the fan runs loudly because airflow is blocked.
Solution:
Make sure there is enough ventilation space under the cooktop. Do not block the cooling fan area, and ensure air can circulate freely around the base.
3. Cooktop not powering on
The induction hob does not turn on after installation.
Solution:
Check that the power connection matches the rating label voltage. Ensure it is properly connected to a junction box and not a standard plug. Have a qualified electrician verify the wiring.
4. Error code appears on display
The cooktop shows an error code or stops working unexpectedly.
Solution:
Check whether suitable cookware is placed correctly on the cooking zone. Induction cooktops require compatible cookware. If no cookware is detected within 60 seconds, the unit will shut off automatically.
5. “H” heat indicator stays on
An “H” symbol appears and does not disappear immediately after cooking.
Solution:
This is normal. It means the surface is still hot. Wait until the surface cools down; the indicator will disappear once it reaches a safe temperature.
How Much Does It Cost to Have an Induction Cooktop Installed?
Typical Installation Cost Breakdown
In a straightforward case where electrical infrastructure is already suitable, installation is relatively affordable:
Basic replacement (existing 240V circuit already in place):
$150 – $400
Moderate upgrade (new wiring run to cooktop):
$300 – $800
Electrical panel / switchboard upgrades (RCBOs, breakers, safety upgrades):
$500 – $2,000+ depending on scope
Full installation including upgrades (like your example):
$600–$1,200 typical homeowner range
Real User Example (from your reference)
One homeowner reported:
About $600 total
Included:
Running a new wire to the cooktop
Upgrading switches / switchboard components (RCBOs)
Surge protection addition
Other minor electrical adjustments included in the same job
This is a very realistic mid-range scenario for older homes that need partial electrical upgrades but not a full panel replacement.
What Drives the Cost Up?
The biggest cost factors are:
- No existing 240V dedicated circuit
- Older electrical panel needing upgrades
- Long wiring distance to kitchen island or cooktop location
- Converting from gas to induction (requires full electrical setup)
- Local labor rates (electricians vary widely by region)
FAQs
Can People with a Pacemaker Use an Induction Stove?
Induction cooktops generate electromagnetic fields to heat cookware, which raises concerns for pacemaker users. In most cases, modern induction cooktops are considered low-risk when used properly because the magnetic field is strongest directly at the cooking surface and diminishes rapidly with distance.
For safety, it is recommended that users maintain a distance of at least two feet from the cooktop while it is in use, and avoid leaning directly over it.
Can I Install My own Induction Cooktop?
You can install an induction cooktop yourself if you are replacing an existing electric cooktop, your kitchen already has a proper 240V dedicated circuit, and no electrical panel upgrades are required. DIY installation involves carefully connecting the wiring, securing the cooktop in the countertop, and ensuring proper grounding. However, if you need to run a new 240V line, convert from gas, or upgrade your breaker panel, it is strongly recommended to hire a licensed electrician. Following manufacturer instructions and local electrical codes is essential to ensure a safe and compliant installation.
Do I Need a Special Electrical Outlet for an Induction Cooktop?
Yes, most induction cooktops require a dedicated 240V circuit that can handle the specific amperage of the appliance, typically ranging from 20A to 50A depending on cooktop size.
How Long Does Installation Take?
The time required to install an induction cooktop depends on the complexity of the job. Replacing an existing cooktop with compatible wiring usually takes one to two hours, while running a new electrical line can extend the process to three to six hours. If the installation requires upgrading the electrical panel or adding new breakers, the work may take a full day or more. Scheduling with a professional electrician is recommended to get an accurate estimate based on your kitchen setup.
What Type of Cookware Works with Induction Cooktops?
Induction cooktops only work with cookware that is magnetic. Suitable materials include cast iron, magnetic stainless steel, and cookware specifically labeled as induction-compatible. Cookware made from aluminum, copper, or glass without a magnetic base will not work. A simple way to test compatibility is to see if a magnet sticks to the bottom of the pan; if it does, the pan can be used on an induction cooktop. Using the correct cookware ensures efficient heating and proper functioning of the appliance.
Is Induction Cooking Energy Efficient?
Yes, induction cooktops are highly energy efficient because they transfer energy directly to the cookware rather than heating the burner surface. This results in faster cooking times, reduced energy waste, and less heat emitted into the kitchen. Induction cooking also allows for precise temperature control, which can further reduce energy consumption and improve cooking results compared to traditional gas or electric resistance cooktops.
Do I Need to Use a Range Hood with an Induction Cooktop?
While induction cooktops do not produce combustion gases like gas stoves, using a range hood or other ventilation system is still recommended to manage cooking steam, smoke from oils, and food odors.
