Under Cabinet Range Hood Exhaust Guide: CFM & Ducting

An under-cabinet range hood exhaust is designed for homeowners who want more than simple air filtration. In the U.S., this keyword usually refers to a cabinet-mounted range hood with external exhaust ventilation, meaning the hood connects to ductwork and removes cooking smoke, grease, heat, and odors by sending air outside the home.

Many American homeowners search for an under-cabinet range hood exhaust when replacing an inefficient over-the-range microwave fan, upgrading an older kitchen ventilation system, or improving indoor air quality. However, choosing the right hood is only part of the process — installation and duct routing are often the biggest concerns.

Before buying, homeowners usually need to answer questions like:

• Can my existing cabinet support an under-cabinet range hood?

• Can I vent the hood through the wall or cabinet above?

• What happens if a wall stud blocks the duct path?

• What duct size and shape should I use?

• How can I reduce noise caused by bends in the ductwork?

Understanding these installation factors helps ensure the range hood performs as expected after installation.



What Does “Under Cabinet Range Hood Exhaust” Mean?

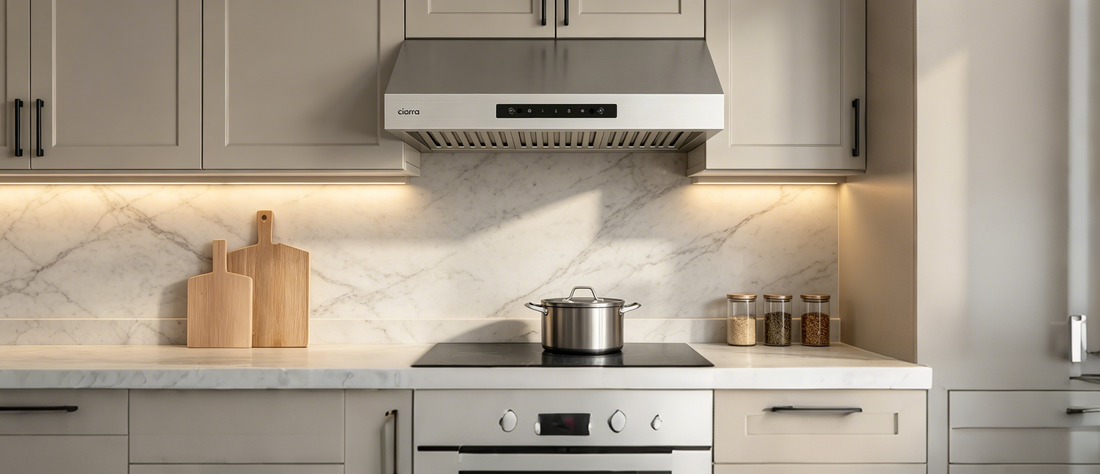

An under cabinet range hood exhaust refers to a range hood installed underneath kitchen cabinets that uses a ducted exhaust system to remove cooking air outdoors.

Unlike ductless range hoods that use charcoal filters to clean and recirculate air, an exhaust range hood physically removes:

• Cooking smoke

• Grease particles

• Steam and moisture

• Heat generated during cooking

• Strong food odors

The typical airflow path is:

Cooktop → Range hood → Grease filter → Blower motor → Exhaust duct → Exterior wall or roof vent

For homeowners who frequently cook with high heat, frying oil, seafood, or gas burners, an externally vented under cabinet range hood is often the preferred choice because it provides true ventilation rather than only odor reduction.

Why Are Many Homeowners Replacing Microwave Fans with Under Cabinet Exhaust Hoods?

A common reason Americans search for an under cabinet range hood exhaust is that their existing over-the-range microwave ventilation is not powerful enough.

Many built-in microwave fans only provide limited airflow and are often designed mainly for light cooking. Homeowners upgrading their kitchens often want:

• Stronger smoke capture

• Better grease removal

• Less cooking odor throughout the home

• A quieter and more effective ventilation system

An under cabinet range hood provides a dedicated blower system designed specifically for cooking ventilation.

How Does an Exhaust Under Cabinet Range Hood Work?

A ducted under cabinet range hood works through three stages:

1. Capturing Smoke and Steam

The hood canopy sits directly above the cooking surface. As hot air rises from the stove, the hood captures airborne particles before they spread throughout the kitchen.

A properly sized hood should cover the cooking area effectively, especially when using multiple burners.

2. Filtering Grease

Before air enters the duct system, filters trap grease particles.

Common filter types include:

• Aluminum mesh filters

• Stainless steel baffle filters

Regular cleaning helps maintain airflow and prevents grease buildup inside the duct.

3. Exhausting Air Outdoors

The blower pushes contaminated air through ductwork and releases it outside through:

• Exterior walls

• Roof vents

• Ceiling ventilation routes



This is why the word “exhaust” is important in this search term — consumers are usually looking for a hood that actually removes air from the kitchen.

Installing an Under Cabinet Range Hood Exhaust: What Homeowners Need to Know

Installation is one of the biggest concerns when choosing an exhaust range hood.

A typical installation involves:

• Removing the existing microwave or old hood

• Installing the new under cabinet hood

• Connecting electrical wiring

• Routing ductwork through the cabinet or wall

• Installing an exterior vent cap

The easiest installation scenario is when the range hood is mounted on an exterior wall, because the duct path can be short and direct.

However, many homeowners face challenges when existing structures interfere with the duct route.

FAQs about Installing an Under-Cabinet Range Hood Exhaust

How Do You Install Ductwork When a Wall Stud Blocks the Path?

A common installation issue discussed by homeowners is:
“I want to vent my under cabinet range hood directly through the cabinet and exterior wall, but a wall stud blocks the straight path. Can I offset the duct slightly?”

This situation is very common, especially when installing a new hood in an existing kitchen.

The ideal solution is always:

Keep the duct route as straight and short as possible.

A shorter duct path improves:

• Airflow performance

• Noise control

• Motor efficiency

However, when a stud prevents a straight connection, installers may need to create a small offset.

Can You Use 45-Degree Duct Bends Instead of 90-Degree Turns?

Many range hood manufacturers recommend using two 45-degree bends instead of one sharp 90-degree elbow.

The reason is airflow turbulence.

A sharp 90-degree turn can:

• Restrict airflow

• Increase resistance

• Create more operating noise

• Reduce effective CFM performance

A smoother transition using two 45-degree elbows allows air to change direction more gradually.

For example:

Better airflow:

Range hood → 45° bend → short duct → 45° bend → exterior vent

Instead of:

Range hood → 90° elbow → exterior vent

For a short duct run, a small offset of several inches can usually be achieved without significantly affecting performance when the bends are designed properly.

What Duct Size Does an Under Cabinet Exhaust Hood Need?

Duct size depends on the hood’s CFM rating.

Common recommendations:

Hood Airflow	Typical Duct Size
Up to 300 CFM	6-inch duct
400–600 CFM	6–8 inch duct
700+ CFM	8-inch or larger duct



Using a duct that is too small can create:

• Reduced airflow

• Increased noise

• Higher motor stress

However, oversized ducting is not always necessary.

For example, a homeowner with a high-output gas range may assume an 8-inch duct is required, but the correct size should match the hood specification and cooking requirements.



How Much CFM Do You Need for a Gas Range?

For gas cooktops, ventilation requirements are often calculated based on burner output.

A common guideline is:

Approximately 100 CFM for every 10,000 BTU of burner output

For example:

30,000 BTU gas range → around 300 CFM
60,000 BTU gas range → around 600 CFM

Choosing a hood with excessive CFM without proper duct sizing can create unnecessary noise and installation challenges.

The best approach is to balance:

• Cooking style

• Range BTU output

• Kitchen size

• Available ductwork

A properly balanced system provides enough power to capture cooking pollutants without creating unnecessary noise, energy loss, or installation problems.

1. Match CFM to Your Gas Range BTU Output

The first factor to consider is the total BTU output of your gas cooktop.

A commonly used guideline is:

100 CFM for every 10,000 BTU of burner output

2. Balance CFM with Kitchen Size

Kitchen size also affects how quickly cooking air spreads.

A small enclosed kitchen may require less airflow because smoke and odors are more concentrated near the cooking area.

A large open-concept kitchen often benefits from stronger ventilation because cooking pollutants can travel farther into living spaces.

Consider:

• Kitchen square footage

• Ceiling height

• Distance between cooking area and living spaces

• Whether the kitchen is open or enclosed

For example:

A 400 CFM hood may work well in a small closed kitchen.
The same hood may feel less effective in a large open kitchen with high ceilings.

3. Make Sure Your Ductwork Can Support the CFM

A powerful range hood can only perform as well as the duct system allows.

Many homeowners make the mistake of choosing a 900 CFM hood but installing it with a duct that is too small or has too many bends.

The duct system should be considered as part of the entire ventilation system, not just an accessory.

Match Duct Size to Range Hood CFM

The first step is selecting the correct duct diameter based on the hood’s airflow capacity.

General recommendations:

Range Hood Airflow	Recommended Minimum Duct Size
Up to 400 CFM	6-inch duct
400–600 CFM	6–8 inch duct
600–900 CFM	8-inch duct
900+ CFM	8–10 inch duct



For a 900 CFM under-cabinet range hood, an 8-inch duct is typically the minimum requirement, while some high-performance models may recommend a larger duct depending on the manufacturer’s specifications.

Using a larger duct helps reduce airflow resistance and allows the blower to operate more efficiently.

Does the Exhaust Outlet Size of a Range Hood Represent the Required Duct Size?

Yes, exactly.

When selecting and installing a range hood, the exhaust outlet diameter (also called the exhaust vent size or duct collar size) directly indicates the size of the duct pipe that should be connected to the hood.

For example:

If a range hood has a 6-inch exhaust outlet, you should use a 6-inch duct.
If a range hood has an 8-inch exhaust outlet, the duct system should also be designed around an 8-inch duct.

Matching the duct size to the range hood outlet is one of the most important factors affecting ventilation performance, noise level, and overall exhaust efficiency.

However, in real-world U.S. home installations, there are several important details homeowners should understand before installing an under cabinet range hood exhaust system.

Why Should You Never Reduce the Duct Size?

One of the most common installation mistakes is using a reducer to connect a larger range hood outlet to a smaller existing duct.

For example:

Incorrect installation:

6-inch range hood outlet → 4-inch duct

Although this may seem like a convenient solution, it can significantly reduce ventilation performance and create long-term problems.

1. Increased Noise and Whistling

A powerful range hood needs enough space for air to move freely.

For example, a 650 CFM hood forcing air through a smaller 4-inch duct can create:

Higher airflow speed
Strong turbulence
Wind noise
Whistling sounds

Even a quiet brushless motor cannot compensate for poor duct design.

2. Reduced Actual CFM Performance

The advertised CFM rating is measured under suitable airflow conditions.

When the duct is too small:

Air resistance increases
Static pressure rises
The blower has to work harder
Actual airflow decreases

A 650 CFM range hood connected to an undersized duct may deliver significantly less real-world ventilation than expected.

3. Additional Stress on the Motor

Restricted airflow forces the blower motor to operate under higher resistance.

Over time, this can contribute to:

Increased operating stress
Reduced efficiency
Shorter component lifespan

Proper duct sizing helps the motor operate smoothly and efficiently.

Best Installation Practice: Match the Duct Size to the Hood Outlet

For the best performance, always follow this principle:

Range hood exhaust outlet size = recommended duct size

For example:

• 6-inch exhaust outlet → Use 6-inch rigid duct

• 8-inch exhaust outlet → Use 8-inch rigid duct

Avoid unnecessary reductions unless specifically approved by the manufacturer.

CIARRA Under Cabinet Range Hood Exhaust Solutions: Designed with the Right CFM and Ducting for Reliable External Ventilation

When choosing an under cabinet range hood exhaust, many homeowners are concerned about whether the hood’s airflow capacity matches the duct size requirements. A high-CFM hood can only deliver strong ventilation when the duct system is properly designed. That is why CIARRA range hoods are engineered with balanced airflow performance, recommended exhaust outlet sizes, and flexible installation options to ensure reliable external ventilation.

From powerful 650 CFM models for heavy cooking to efficient 200 CFM low-profile solutions for apartments and condos, CIARRA under cabinet range hoods are designed to match different kitchen layouts, cooking habits, and duct installation conditions.

CIARRA 30 Inch Under Cabinet Range Hood CAS75908B-N — 650 CFM High-Performance Exhaust Ventilation

Exhaust Outlet Size and Recommended Duct Installation

The CIARRA CAS75908B-N is designed as a powerful 650 CFM under cabinet range hood for homeowners who need stronger ventilation for frying, grilling, stir-frying, and high-temperature cooking.



To support this airflow performance:

• Airflow Capacity: Up to 650 CFM

• Exhaust Type: Convertible ducted / ductless installation

• Recommended Duct Size: 6-inch round duct for ducted external exhaust installation.

For best results, homeowners should install:

• 6-inch rigid metal duct

• Short and direct duct routes

• Minimal elbows and bends

Avoid reducing the duct size to a smaller diameter, as this can create airflow restrictions and increase noise.



With a high-efficiency brushless motor, the CAS75908B-N delivers:

Up to 650 CFM suction power

Maximum noise level of only 7.5 sones
The strong airflow helps capture smoke, grease, and odors directly above the cooking surface before they travel throughout the home.

Convertible Venting for Different Home Installations

Not every home has existing ductwork. The CAS75908B-N provides flexible installation options:

Ducted External Exhaust
For apartments or homes where external venting is not possible:

Add 2 × CACF003 carbon filters (sold separately)
Filter cooking odors before returning cleaner air to the kitchen

Dual Wave Gesture and Touch Control
Cooking often involves oily hands, which can make traditional control panels difficult to maintain.

The CAS75908B-N features:

• Wave gesture control

• Touch control operation

• 2-level dimmable LED lighting

Users can adjust ventilation without touching greasy controls during cooking.





CIARRA 36 Inch Under Cabinet Range Hood CAB90918B — Balanced 300 CFM Ventilation with Flexible Ducting

Exhaust Outlet Size and Recommended Duct Size

The CIARRA CAB90918B is designed for homeowners who need reliable ventilation without requiring an oversized duct system.

Product ventilation specifications:

• Airflow: 300 CFM

• Venting Type: Convertible ducted/ductless

• Recommended Duct Size: 5-inch duct for external exhaust installation



For installation, homeowners should keep the duct route:

• As short as possible

• Straight whenever possible

• With fewer sharp turns

This helps the hood achieve better real-world performance.

Flexible Ducted and Ductless Installation

The CAB90918B adapts to different housing situations.

External Ducted Exhaust

For homeowners with existing ventilation:

Connect the hood to outside ductwork
Remove smoke and odors directly outdoors
Recirculating Installation

For apartments or rentals:

Add CACF006 carbon filter (sold separately)
Filter cooking odors internally

Three-Speed Fan Control

Different cooking methods require different airflow levels.

The 3-speed fan allows users to choose:

• Low speed for simmering

• Medium speed for daily cooking

• High speed for frying or stronger odors

This provides efficient ventilation without unnecessary energy use.

Washable 5-Layer Aluminum Mesh Filters

The reusable filters help capture:

• Cooking grease

• Oil particles

• Food residue

They can be removed and washed, helping reduce long-term maintenance costs.



Slim Under Cabinet Design

The low-profile design helps save cabinet space while maintaining a clean modern appearance.

It works well for:

• Compact kitchens

• Condos

• Modern renovations

CIARRA 30 Inch Low Profile Under Cabinet Range Hood CAS75918B-OW — Compact 200 CFM Exhaust Solution

Exhaust Outlet Size and Recommended Duct Size

The CIARRA CAS75918B-OW is designed for compact kitchens requiring practical external ventilation.



Key duct specifications:

• Airflow: 200 CFM

• Exhaust Outlet Diameter: 4.72 inches

• Recommended Duct Size: 4.72-inch round duct (approximately 5-inch duct)

This exhaust size is designed to match the hood’s airflow capacity and provides efficient ventilation for everyday cooking.

For ducted installation:

Connect the exhaust pipe directly to the 4.72-inch outlet
Keep duct length short
Avoid unnecessary bends

This helps maintain airflow efficiency and reduces noise.

The 3-speed motor allows users to adjust airflow depending on cooking intensity.

Stainless Steel Low Profile Design

The ultra-slim structure helps maximize kitchen space.

It is ideal for:

• Apartments

• Condos

• Small kitchens

The stainless steel exterior provides a clean appearance while improving durability.

Easy-Control Operation and LED Lighting

The push-button control allows simple operation of:

• Fan speeds

• Lighting

Two 3W LED lights provide better visibility while cooking with lower energy consumption.



CIARRA 30 Inch Convertible Low Profile Range Hood CAS75918A-OW — Flexible Horizontal and Vertical Exhaust Installation

Exhaust Outlet Size and Recommended Duct Size

The CIARRA CAS75918A-OW uses a:

• 4.78-inch round exhaust outlet

• Recommended duct size: 4.78-inch to approximately 5-inch round duct



The hood supports flexible duct installation depending on kitchen layout.

Vertical Exhaust Installation

The top ventilation outlet includes:

4.7-inch round damper

Users can connect an exhaust pipe through the cabinet to remove cooking odors outside.

Horizontal Exhaust Installation

The rear ventilation opening allows direct wall exhaust installation when the exterior wall is behind the hood.

This makes installation easier for different kitchen designs.

Efficient 200 CFM Performance

Designed for everyday cooking, the hood provides:

200 CFM suction
3 fan speeds
Maximum 6.5 sones noise level

It offers practical ventilation without taking up excessive space.

Ultra Slim Stainless Steel Design

The low-profile design fits neatly under cabinets and works well in:

Apartments
Condos
Small kitchens
Modern renovations
Three-Speed Extraction and Easy Controls

The mechanical push-button control provides simple operation:

Three fan speeds
Light control

Users can easily adjust ventilation from light cooking to stronger frying sessions.

Energy-Efficient LED Lighting

Two integrated 3W LED lights illuminate the cooking surface while consuming less energy.





Choosing the correct duct size is essential for getting the best performance from an under cabinet range hood. By matching CFM, exhaust outlet size, and duct design, CIARRA range hoods help homeowners achieve effective smoke removal, quieter operation, and reliable long-term ventilation.
